A1200NG Motherboard

The A1200NG motherboard fits into original Commodore Amiga 1200, Escom and reproduction desktop cases. The ports align with the holes in the case using the supplied backplate.


AmiBench is the desktop pre-installed with many famous classic applications such as Final Writer, OctaMED, Directory Opus, HippoPlayer, YAM and more. Create your own boot system: A1200NG supports installing of multiple operating systems with the corresponding ROMs. You can boot directly into any of the OS you have installed on the system.

Caractéristiques:
   Games menu: add, edit & launch ADF/HDF/WHDBoot games, scene demos & apps (OCS, ECS, AGA).
   AmiBench: 1080p screenmode with 32-bit icon set. Run Classic 68k programs.
   Dual 9-pin Joystick Ports: accepts Commodore compatible joysticks ¹
   HDMI compatible 1080p output: plugs into HDMI compatible television or monitor
   Wireless Internet: connects to AmiSphere for system updates and email
   Bluetooth: optionally output audio to Bluetooth speaker
   34-pin Floppy Header: read and write to real 880K floppy disks (Greaseweazle compatible)
   RS232 Serial Port (DB25)
   System RAM: 4GB in total. 1GB Fast Memory allocated for AmiBench.
   Hard Drive: 64GB, 128GB or 256GB (High Speed) option.
   Internal USB headers for connection of optional USB to SATA or USB to IDE adapters.
   External USB headers for connection of DrawBridge USB floppy disk drives, Mice, MIDI interfaces, Flash Drives.


Logiciels préinstallés:
   AmiBench Release V46
   Personal Paint (PPaint) V7.4
   OctaMED V8
   Directory Opus V4
   Final Writer V7.2
   YAM email client
   JST
   Utilities: EaglePlayer, HippoPlayer, Dock, Clock, Calendar
   Games: Super Skidmarks, Thunderhell, Virtual GP, T-Racer


Inclus de base?

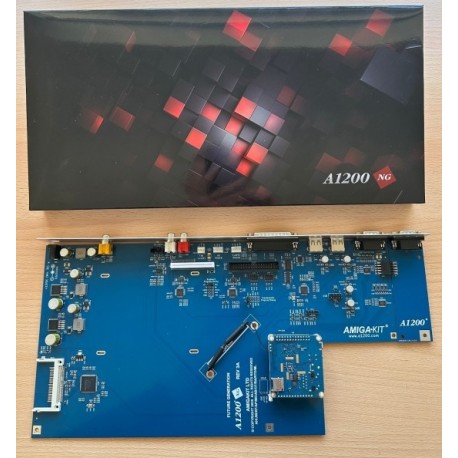

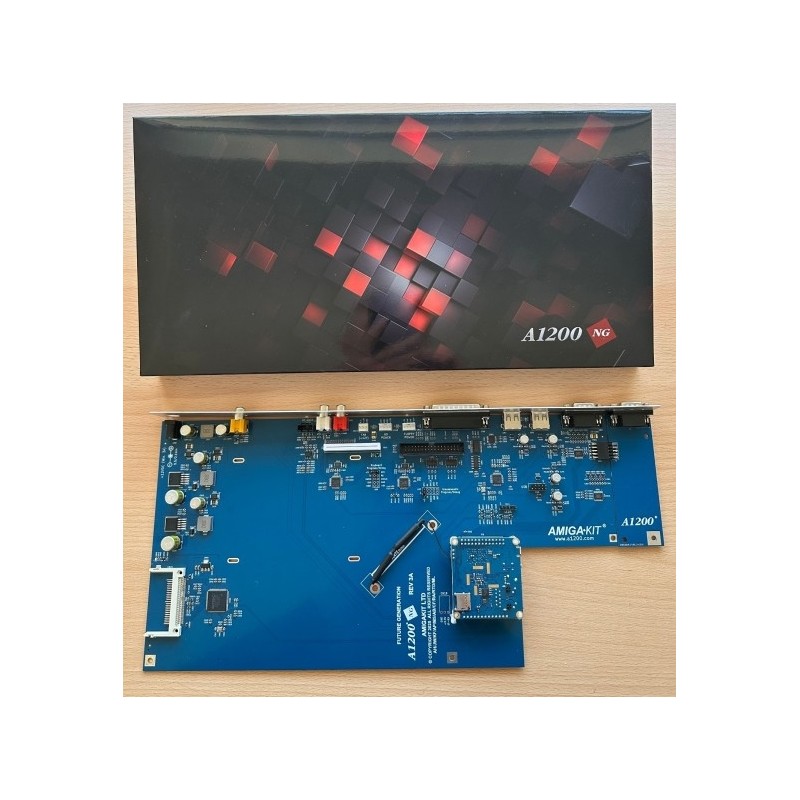

   A1200NG motherboard
   ARM module (H618 Quad Core 1.5Ghz/4GB RAM)
   64GB or 128GB micro SD card
   HDMI cable with backplate (fits underneath floppy drive)
   Metal backplate for ports
   Power Supply Unit
   Printed Colour Manual
   A1200NG case badge
   Silver foil serial case sticker
   Hex bolts and screws


Options:

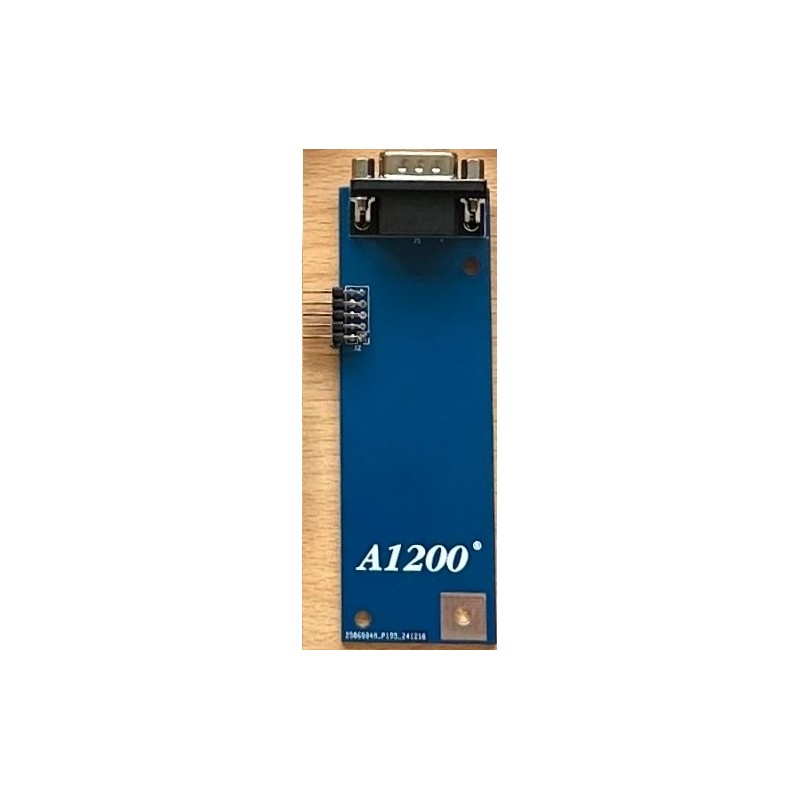

   A1200 9-pin joystick port 1 board

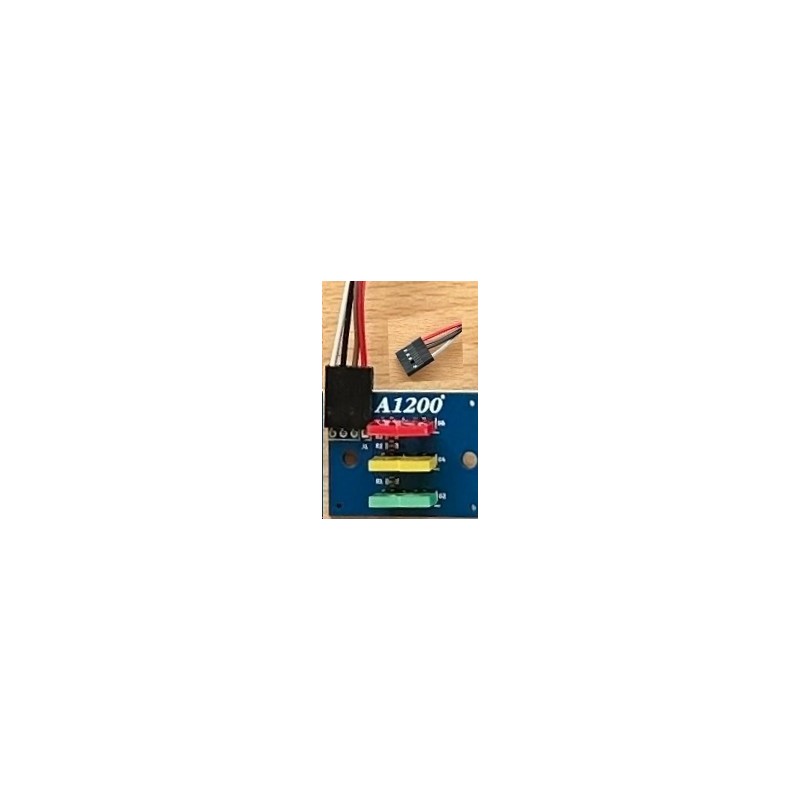

   A1200 Triple LED adapter module
   A1200 motherboard insulation layer
   CPU Boost Kit


Rear External Ports:
   9-pin Joystick
   USB ports
   25-pin Serial Port
   Left / Right Audio RCA audio out
   Composite (no driver support)
   Power In Port
   Compact Flash reader


Internal Connectors:
   34-pin Floppy Disk Drive header
   USB header (dual)
   A1200 LED module header
   A1200 keyboard ribbon header (31 pin)
   4-pin Power header for optional floppy disk drive
   4-pin Power header for optional SATA/IDE hard drive
   2-pin Fan header


Speed Performance

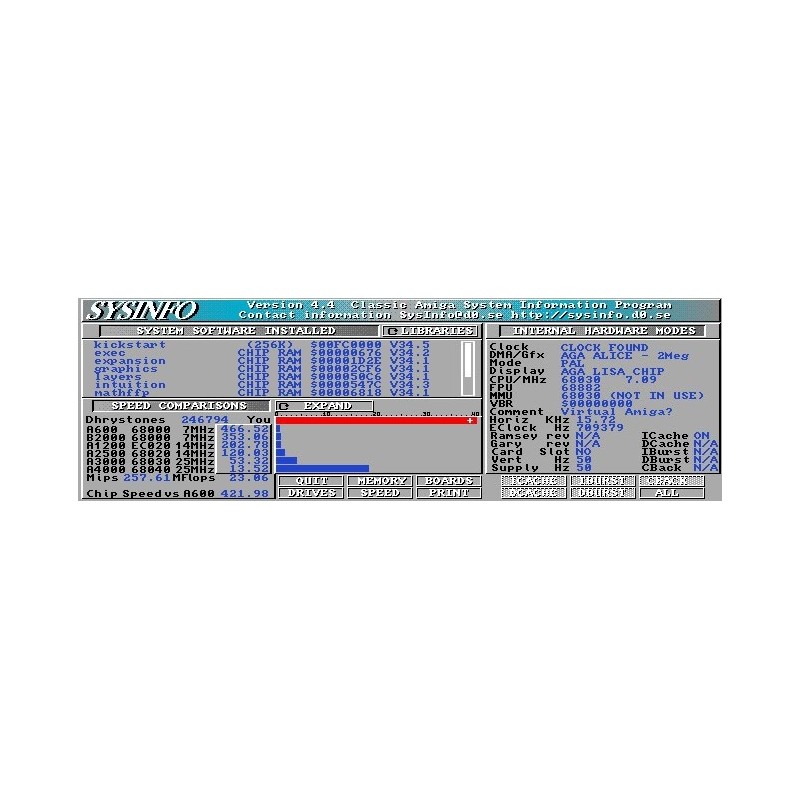

The A1200NG delivers the following SysInfo speed rating of 257 MIPs or 303 MIPs in with the optional CPU Boost Kit installed and activated.

SysInfo


Floppy Disk Drive Compatibility
The A1200NG is compatible with the following floppy disk drives (not supplied):

   PC compatible 1.44MB drive
   Commodore original 880K / 1.76MB drive drive

It is recommended to use original 600 / 1200 floppy disk drives to fit into an original case.


¹ single 9-pin joystick port is available on motherboard and a second 9-pin joystick port is attached using a plug in board (product option).
