A1200 Extension 8Mo FastRam

8MB FastRam Memory Extension for Amiga 1200 :

- Adds 8MB of Fast to the Amiga 1200
- 2 Clockports Header:
    1 for Real Time Clock Module (option available separately).
    1 Second to give computer more expandability.

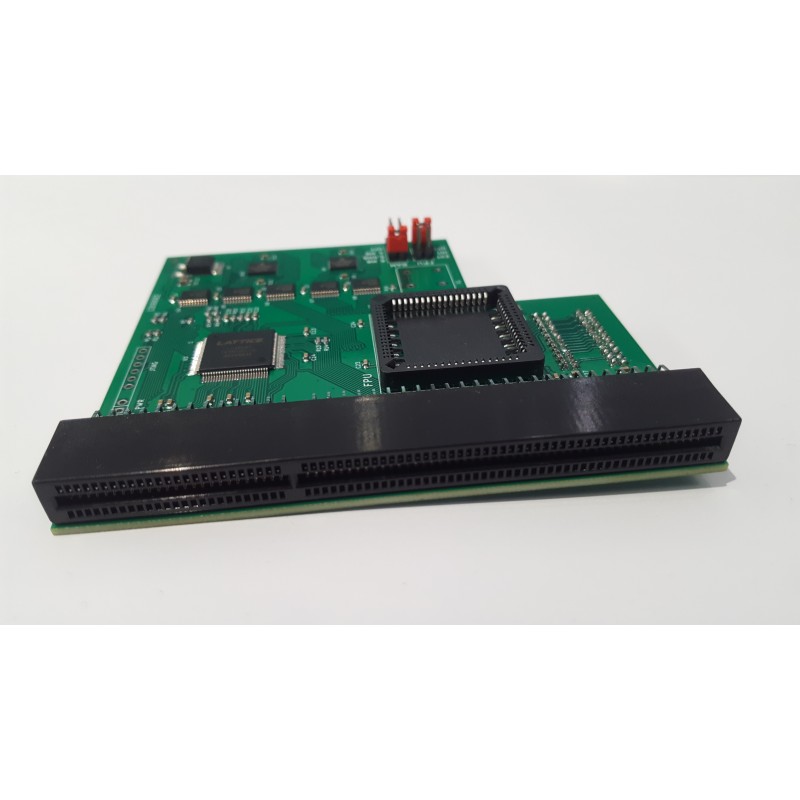

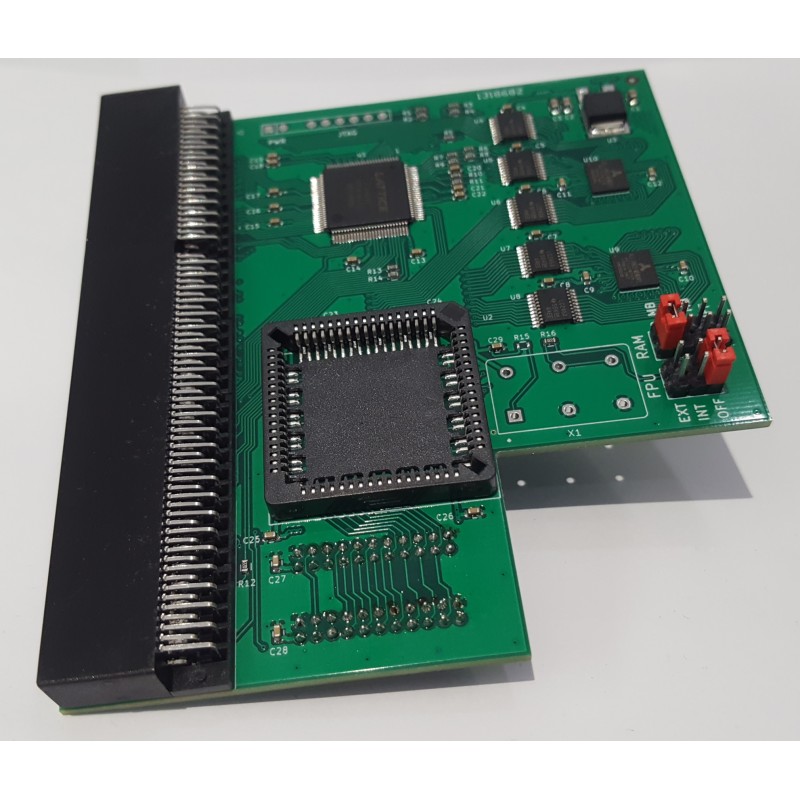

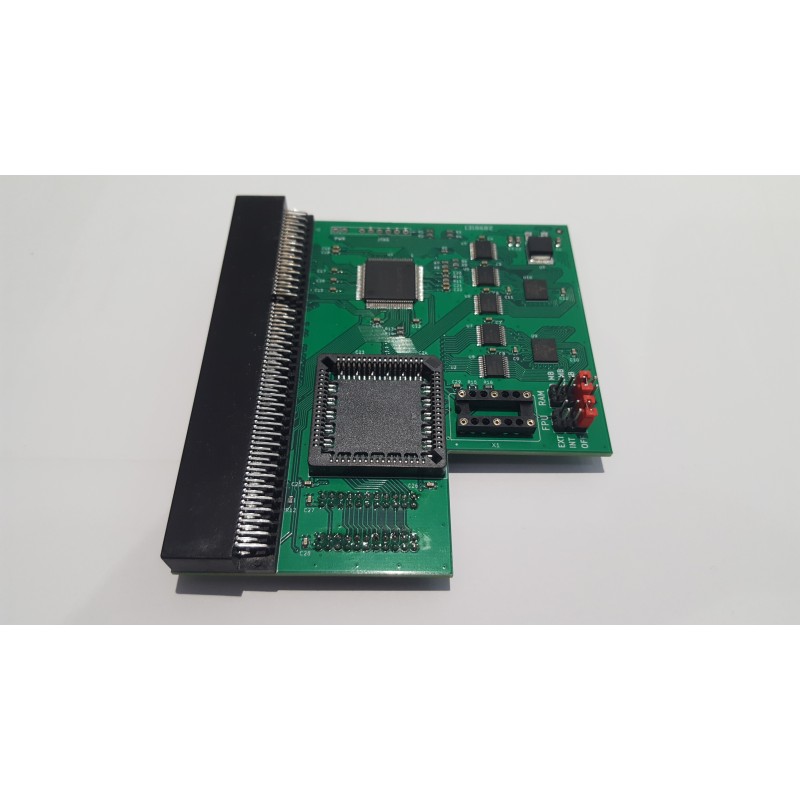

- Floating Point Unit socket accepting optional 68882 PLCC FPU up to 40Mhz
- Quartz Oscillator support included.

N.B. : PCMCIA compatibility by Jumper or Shell program (4MB or 5.5MB**).

Extra memory is essential for many games which require more Fast RAM to work.

This expansion is ideal for use with WHDLOAD.

Memory expansion is installed by slotting it into the trapdoor expansion compartment underneath the computer.

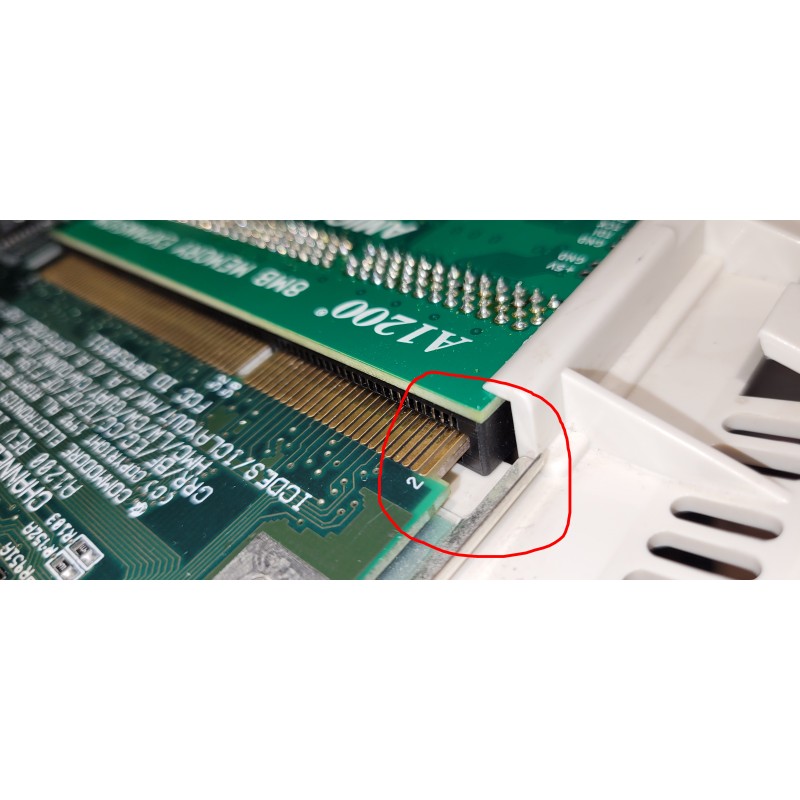

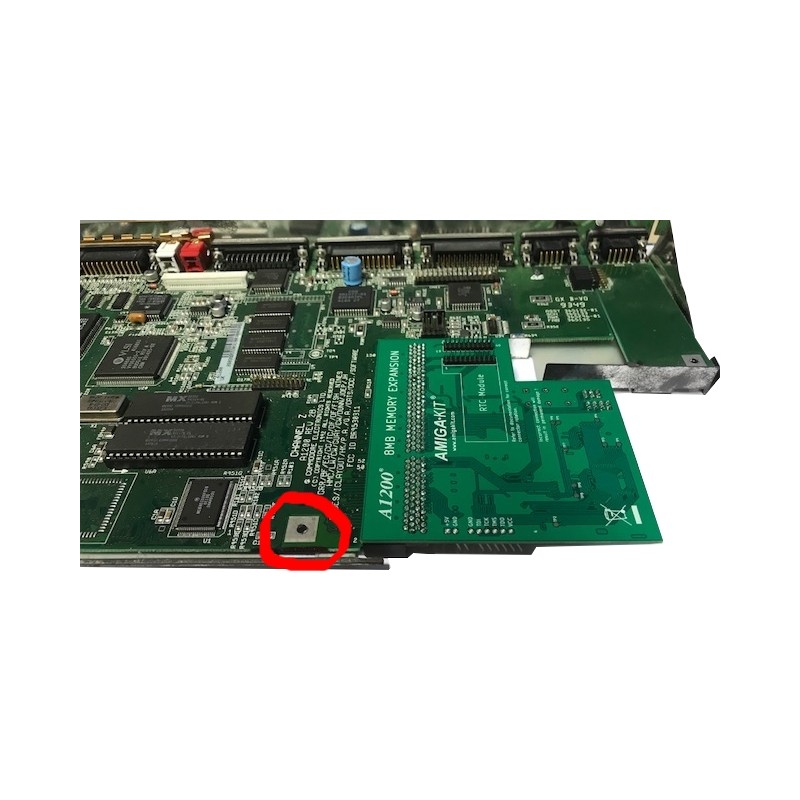

A1200 Case must be opened and 2 motherboard screwes need to be unscrewed in order to plug the board more easily.

Memory expansion features two Real Time Clock header to install an optional Real Time Clock module.

** 5.5MB PCMCIA compatiblity mode requires downloadable software patch added to startup-sequence.
